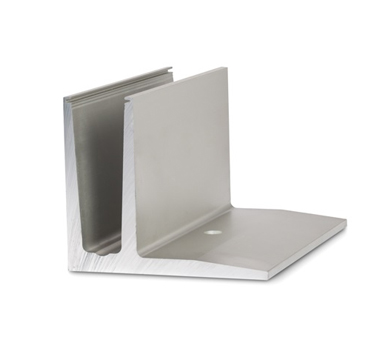

0.74 kN Extended Mount Channel

0.74kN Base Fixed Channel

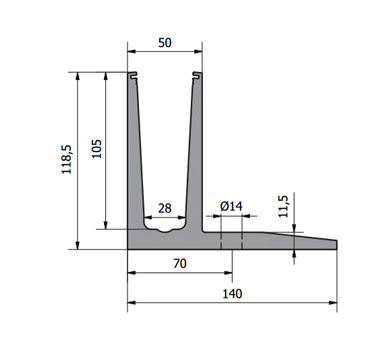

0.74kN Base Fixed Channel Diagram

Create a contemporary look without obscuring the view.

Base Fixed – Extended Mount
Height Width Length Finish Part Numbers
118 mm 140 mm 2500 mm Plain Aluminium OL10.3010.002.11
118 mm 140 mm 5000 mm Plain Aluminium OL10.3010.005.11
118 mm 140 mm 2500 mm Mill Finished -
118 mm 140 mm 5000 mm Mill Finished OL10.3010.005.10
118 mm 140 mm 2500 mm Stainless Steel Effect -
118 mm 140 mm 5000 mm Stainless Steel Effect OL10.3010.005.12
118 mm 140 mm 2500 mm Colour Coating -
118 mm 140 mm 5000 mm Colour Coating OL10.3010.005.13
Have it your way - with thousands of finish choices. Colour coating or Unfinished. Avalible in and RAL colour. Custom coatings. Aluminium, anodised or mill finished
